2004 Coastal Color Infrared Orthophotography

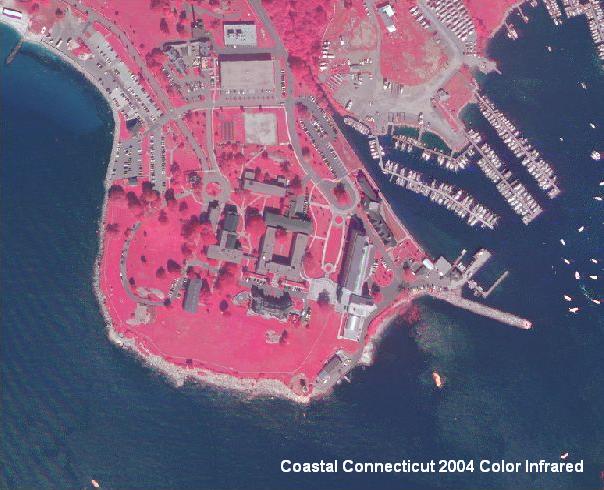

Example of 2004 Coastal Infrared Orthophotography

Description

Coastal Connecticut 2004 Color Infrared Orthophotography is an aerial survey of 2004, leaf on, color infrared imagery from the NOAA Coastal Services Center and U.S. Geological Survey for the region encompassed by Connecticut municipalities located along the Long Island Sound coastline. The ground resolution for this imagery is 1.64 feet (0.5 meter) per image pixel.

Purpose

Orthophotography combines the image characteristics of a photograph with the geometric qualities of a map. This leaf-on, color infrared imagery serves a variety of purposes from observing vegetation and crop condition to supporting identification and mapping of habitat areas through photo interpretation. These data have been created as a result of the need for having high resolution coastal imagery immediately available and easily accessible in order to enhance the capability of the NOAA Coastal Services Center and the U.S. Geological Survey.

The color infrared (CIR) imagery is useful for discerning features such as vegetation that give off a distinct signature in the infrared spectrum.

  • Intense bright red typically represent vigorously growing, dense vegetation that produces a large amount of chlorophyll.
  • Lighter tones of red, magenta, pinks generally represent vegetation that does not contain as much chlorophyll such as mature stands of evergreens. Agricultural fields nearing the end of the growing season, and dead or unhealthy plants often appear in less intense reds, green, or tan.
  • White, blue, green, or tan These colors often represent soils. Darker shades of soil generally indicate higher moisture levels or organic matter. Soil composition also affects soil color appearance, with clayey soils appearing in darker tans and blue-greens, and sandy soils appearing white, gray, or light tan. Crops nearing the end of the growing season, or dead or unhealthy plants will appear in various light tones of red and pink, or greens and tans. Pale or light blue can also represent sediment-laden water. Buildings and manmade materials such as concrete and dry gravel generally appear white to light blue in CIR photos.
  • Dark blue to black - Water ranges from shades of blue to black depending on the clarity and depth. Usually, the clearer the water, the darker the color. However, shallow streams will often display the colors associated with the materials in their stream beds. If the stream bed is made of sand, the color will appear white or very light tan due to the high reflective property of sand. Asphalt roads generally appear dark blue to black.

Use Limitations

This is leaf on orthophotography so the tree canopy blocks the ground surface from view and creates shadows that can obscure nearby features. Also, the location and shape of features in other GIS data may not exactly match information shown in the 2004 aerial photography primarily due to differences in spatial accuracy and data collection dates. For example, a stream in the 1:24,000-scale Connecticut Hydrography data from CT DEP may not line up exactly with the watercourse shown in the 2004 aerial photography. Their location and shape are bound to be different because information such as hydrography compiled from older 1:24,000-scale USGS topographic quadrangle maps, lacks the spatial accuracy and is less current than the 2004 orthophotography.

Dataset Information

  • Status - Orthophotography covers approximately 930 square miles and includes the following municipalities: Branford, Bridgeport, Chester, Clinton, Darien, Deep River, East Haven, East Lyme, Essex, Fairfield, Greenwich, Guilford, Groton, Hamden, Ledyard, Lyme, Madison, Milford, Montville, New Haven, New London, Norwalk, Norwich, North Haven, Old Lyme, Old Saybrook, Orange, Preston, Shelton, Stamford, Stonington, Stratford, West Haven, Waterford, Westbrook, and Westport. Includes all offshore islands within the territorial borders of the State of Connecticut with the exception of Goose Island and Falkner Island (offshore of Branford).
  • Date of Data - September 2004. Depending on the area, photography was captured in 2004 on September 20 or 21.
  • Map Scale and Accuracy - The ground resolution for this imagery is 1.64 feet (0.5 meter) per image pixel.

Additional Documentation

  • GIS Metadata - Contains technical documentation describing the 2004 Coastal Color Infrared Orthophotography data and the data sources, process steps, and standards used to collect and store this information in a geographic information system (GIS).

Originators

GIS Data Download

  • Coastal Connecticut 2004 Color Infrared Orthophotography data is available as a statewide mosaic in File Geodatabase format from DEEP GIS Data.
  • Connect GIS and AutoCAD software to this information online using the Ortho 2004 Coast Infrared CT ECO Map Service.
