Federal Open Space

Metadata:


Identification_Information:
Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Publication_Date: 1997
Title:
Federal Open Space
Geospatial_Data_Presentation_Form: vector digital data
Other_Citation_Details:
Data compiled from overlays of muncipal parcels onto USGS 1:24,000 scale topographic quadrangle maps. Data should be used at a 1:24,000 scale (1"=2,000').
Online_Linkage: http://www.ct.gov/deep
Description:
Abstract:
Federal Open Space is a polygon feature-based layer that includes land owned in either easement or fee simple interest by the federal government.  This layer is based on information that was collected and mapped at various scales and at different levels of accuracy.  Types of property in this layer include open space and recreational land open to the public.  Examples include National Park Service land, Army Corps of Engineers land, etc.
Purpose:
Federal Open Space contains property that comprises federally owned land.  This layer can be used with the DEP Property and Municipal and Private Open Space layers for a more comprehensive understanding of open space and recreation land throughout the State of Connecticut.

This layer has not been updated since 2004 and may not be accurate.  For more accurate and current open space parcel data, please see the Protected Open Space and the Protected Open Space Phase 1 feature classes.  Although the data in those feature classes is more accurate, it does not include any easements; it contains only land owned in fee simple interest.  For easements, continue to utilize the Federal Open Space feature class, with the knowledge that it is older data and is subject to verification in municipal land records.
Supplemental_Information:
Please note that this data layer has not been updated since 2004 and, as such, may contain inaccurate feature boundaries or attribute information.  There are no plans to update this layer at present.
Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 1994
Ending_Date: 1997
Currentness_Reference:
ground condition
Status:
Progress: Complete
Maintenance_and_Update_Frequency: None planned
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: -73.525061
East_Bounding_Coordinate: -71.892339
North_Bounding_Coordinate: 42.052338
South_Bounding_Coordinate: 41.045842
Keywords:
Theme:
Theme_Keyword_Thesaurus: None
Theme_Keyword: open space
Theme_Keyword: Federal property
Theme_Keyword: recreation areas
Theme_Keyword: recreation
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: planningCadastre
Theme_Keyword: boundaries
Theme_Keyword: environment
Place:
Place_Keyword_Thesaurus: U.S. Department of Commerce, 1987, Codes for the Identification of the States, the District of Columbia and the Outlying Areas of The United States, and Associated Areas (Federal Information Processing Standard 5-2): Washington, DC, National Institute of Standards and Technology.
Place_Keyword: Connecticut
Place_Keyword: CT
Place:
Place_Keyword_Thesaurus: U.S. Department of Commerce, 1995, Countries, Dependencies, Areas of Special Sovereignty, and Their Principal Administrative Divisions (Federal Information Processing Standard (FIPS) 10-4): Washington, D.C., National Institute of Standards and Technology.
Place_Keyword: United States of Connecticut
Place_Keyword: USA
Access_Constraints: None. The data is in the public domain and may be redistributed.
Use_Constraints:
None.  There are no restrictions or legal prerequisites for using the data.  Once acquired, any modification made to the data must be noted in the metadata.  When printing this information on a map or using it in a software application, please acknowledge the State of Connecticut, Department of Environmental Protection as the original source for this information.
Point_of_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3540
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Browse_Graphic:
Browse_Graphic_File_Name: http://www.cteco.uconn.edu/metadata/dep/browsegraphic/federalopenspacefullview.gif
Browse_Graphic_File_Description:

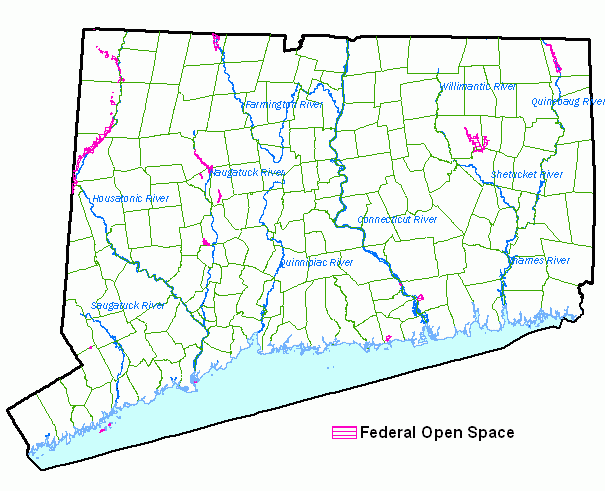

Full view of Federal Open Space property
Browse_Graphic_File_Type: GIF
Browse_Graphic:
Browse_Graphic_File_Name: http://www.cteco.uconn.edu/metadata/dep/browsegraphic/federalopenspacedetailview.gif
Browse_Graphic_File_Description:

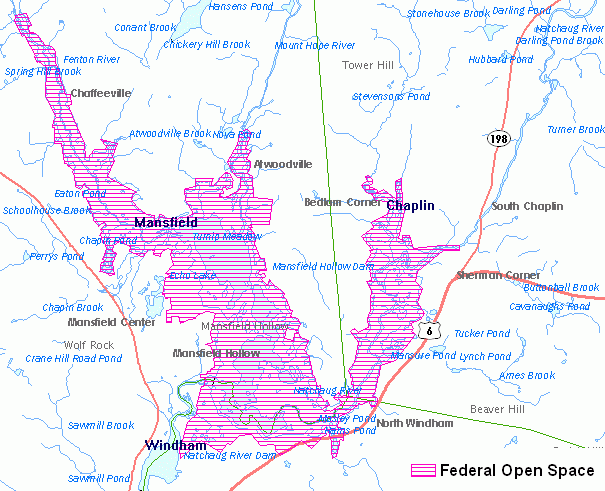

Detail view of Federal Open Space property
Browse_Graphic_File_Type: GIF
Data_Set_Credit:
James Bogar, Cartographer 1994 to 1997; Howard W. Sternberg III, Environmental Analyst 1994 to 2000
Security_Information:
Native_Data_Set_Environment:
This data is published by the State of Connecticut using ArcGIS software developed by Environmental Systems Research Institute (ESRI) in a Microsoft Windows operating system environment.
Cross_Reference:
Citation_Information:
Back to Top
Data_Quality_Information:
Attribute_Accuracy:
Attribute_Accuracy_Report:
Attributes in the Federal Open Space layer have valid values.  Values are within defined domains.  SHAPE_AREA and SHAPE_LENGTH are the feature area and length in feet and are software calculated.
Logical_Consistency_Report:
Polygons conform to the following topological rules.  Polygons do not self overlap.  The ArcInfo Clean function was used to verify topology and enforce a minimum distance between vertices of 4 feet (fuzzy tolerance) and a minimum allowed overshoot length of 10 feet (dangle length).  Polygons may overlap.  No ArcInfo Build and Clean functions were applied.
Completeness_Report:
The completeness of the data reflects the best available federal parcel acquisition records within the State of Connecticut Department of Environmental Protection.  However, there may be omissions due to file errors, incomplete files, missing files, or staff error in the file retrieval process.  No indication of completeness percentage is possible.
Positional_Accuracy:
Horizontal_Positional_Accuracy:
Horizontal_Positional_Accuracy_Report:
The overall positional accuracy level is only as accurate as can be established using tablet digitizing onto 1:24,000 scale topographic quadrangle maps.
Lineage:
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection
Publication_Date: 1914 - Present
Title:
Parcel Records for Federal open space property in DEP
Source_Scale_Denominator: Varied
Type_of_Source_Media: Paper or mylar survey maps
Source_Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 1914
Ending_Date: 2004
Source_Currentness_Reference:
ground condition
Source_Citation_Abbreviation:
Source 1, Parcel Records for Federal open space property in DEP
Source_Contribution:
The maps contain the boundaries of the parcels that are owned by the federal government.  They provide the source for parcel features in this layer.  Scales are not consistent among maps.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection
Publication_Date: 1994
Title:
Federal Open Space Property Mylars
Source_Scale_Denominator: 24000
Type_of_Source_Media: Mylar
Source_Time_Period_of_Content:
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 2, Federal Open Space Property Mylars
Source_Contribution:
Federally owned property delineated at 1:24000 scale from hand drawn delineations on topographic maps, survey maps and sketches.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection
Publication_Date: 1997
Title:
Federal Open Space Property Coverage
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Citation_Abbreviation:
Source 3, Federal Open Space Property Coverage
Source_Contribution:
Federally owned property in an ArcInfo coverage format (NAD27).
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection
Publication_Date: 1999
Title:
Federal Open Space Property Shapefile
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Citation_Abbreviation:
Source 4, Federal Open Space Property Shapefile
Source_Contribution:
Federally owned property in Shapefile format (NAD83).
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection
Publication_Date: 2006
Title:
Federal Open Space Property Geodatabase
Source_Scale_Denominator: Varied
Type_of_Source_Media: disc
Source_Citation_Abbreviation:
Source 5, Federal Open Space Property Geodatabase
Source_Contribution:
Federally owned property in geodatabase format.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Connecticut Department of Environmental Protection
Publication_Date: 2009
Title:
Federal Open Space ArcSDE Feature Class
Source_Scale_Denominator: Varied
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 6, Federal Open Space ArcSDE Feature Class
Source_Contribution:
The Federal Open Space feature class in the Property geodatabase was converted to an ArcSDE feature class.
Process_Step:
Process_Description:
Create 1:24,000-scale Federal Property Mylars - The initial Federal Open Space Coverage was based on information mapped and subsequently digitized from a series of 1:24,000-scale Mylar overlays maintained by the State of Connecticut, Department of Environmental Protection (DEP). The following briefly describes a mapping effort comprised of delineating the outer property boundary of Federally owned property.  This was an ongoing mapping effort at DEP in the 1980's and 1990's.

The Federal Open Space Property Mylar overlays for each 1:24,000-scale, 7.5 minute topographic quadrangle map were made by placing a blank sheet of 2 millimeter Mylar on each topographic quadrangle map and manually drafting the neat lines (boundaries) of the topographic quadrangle map on the Mylar. The neat lines were drafted in India ink and are the basis for manually registering (lining up) the overlay to the corresponding topographic quadrangle map. These overlays were not prepared with the intent of creating a data source for digitizing. Rather, they were meant to be used with and the basis for other 1:50,000 and 1:125,000 scale-overlays for regional assessments of dedicated open space, acreage calculations, and map publication purposes. These Mylars were susceptible to expansion and contraction under varying humidity conditions due to a 2-millimeter thickness. Also, the neat lines drawn on the overlays registered each overlay to the paper topographic quadrangle map and not a stable-base Mylar of the topographic quadrangle map.

All boundaries for property federally owned and depicted on 1:24,000-scale, 7.5 minute topographic quadrangle maps available in the 1970's and 1980's were transferred to Mylar by registering the overlays to the topographic quadrangle maps and tracing the property boundaries published on the USGS topographic quadrangle maps. Polygon areas were delineated on the overlays to represent Federal Properties. Each polygon was labeled and matched to the quadrangle neat lines, if necessary. All line work was done in ink.

Up until 1997, additions and modifications were made to the Property Mylar overlays by incorporating information from the DEP Land Acquisition Division. Two sources of information from the DEP Land Acquisition Division were available: (1) Hand drawn DEP parcel delineations made on a master set of 1:24,000-scale, 7.5-minute topographic quadrangle maps, and (2) Survey maps or sketches provided to the DEP Land Acquisition Division by the federal government.  Both data sources varied in accuracy and quality due to a lack of standards for the acquisition of parcels prior to the 1990's. Nevertheless, the best information available from either of these two data sources was used to update the Property Mylars. For example, when property was acquired and a survey map was available, the boundary was traced with a planimeter to produce a 1:24,000-scale representation of the parcel on a small piece of tracing paper. Using a light table, the parcel delineated on tracing paper was then positioned onto a topographic quadrangle map by lining up, as best as possible, parcel boundaries with features (roads, rivers, stone walls) that appeared both on the original survey map and topographic quadrangle map. The Property Mylar overlay was then registered to the topographic quadrangle map in order to update the corresponding Federal Property mylar. The parcel was either drawn on the mylar as a separate polygon area or merged with a polygon of previously acquired property.
Source_Used_Citation_Abbreviation:
Source 1, Parcel Records for Federal open space property in DEP
Process_Date: 1994 - 1997
Source_Produced_Citation_Abbreviation:
Source 2, Federal Open Space Property Mylars
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Jacqueline Mickiewicz
Process_Step:
Process_Description:
Create 1:24,000-scale Federal Open Space Property Coverage - The initial Federal Open Space Property Coverage was based on information mapped and subsequently digitized from a series of 1:24,000-scale Mylar overlays maintained by the State of Connecticut, Department of Environmental Protection (DEP). The following briefly describes the process to digitally capture the information from the Federal Open Space Mylars:

The Federal Open Space Property Coverage was first created in 1994 using information from the 1:24,000-scale Mylar overlays. The process of creating the coverage involved developing and testing methods to accurately register the Federal Open Space Property Mylar overlays to a digitizing tablet; digitize boundary lines delineated on the overlays that do not coincide with other 1:24,000-scale base-map features (roads, streams, shorelines and town boundaries); use linear features from 1:24,000-scale base-map layers (road, streams, shorelines and town boundaries) as data sources when coincident with property boundaries; edge-match boundaries along quadrangle neat lines; append boundary lines to form and close polygon features; and attribute polygon features. Line feature topology was established with ArcInfo Fuzzy and Dangle tolerances verified at 4 and 10 feet, respectively. Polygon feature topology was established to ensure that no polygons overlapped. Digitizing was performed using PC ArcInfo 3.4d. All other processing tasks were accomplished using either ArcInfo 5 or 6.

Polygon attributes distinguish Federal facilities from one another and include the NAME field to identify the properties.  The CD field classifies properties by type:  Existing Preserved or Preserved Easement Area.

This layer has not been updated since its publication due to no new Federally owned parcels having been acquired within the state.
Source_Used_Citation_Abbreviation:
Source 2, Federal Open Space Property Mylars
Process_Date: 1994-1997
Source_Produced_Citation_Abbreviation:
Source 3, Federal Open Space Property Coverage
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Process_Step:
Process_Description:
Datum Conversion - Using ESRI ArcInfo software, the Federal Open Space Property layer was converted from the Connecticut State Plane Coordinate System of 1927 (NAD 27) to the Connecticut State Plane Coordinate System of 1983 (NAD 83).  The NADCON (North American Datum CONversion) data transformation was used.  A shapefile was then created from the coverage for use with ArcView 3.x.
Source_Used_Citation_Abbreviation:
Source 3, Federal Open Space Property Coverage
Process_Date: 1999
Source_Produced_Citation_Abbreviation:
Source 4, Federal Open Space Property Shapefile
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howard W. Sternberg
Process_Step:
Process_Description:
Federal Open Space converted to geodatabase format.
Source_Used_Citation_Abbreviation:
Source 4, Federal Open Space Property Shapefile
Process_Date: 2006
Source_Produced_Citation_Abbreviation:
Source 5, Federal Open Space Property Geodatabase
Process_Contact:
Contact_Information:
Contact_Person_Primary:
Contact_Person: Jacqueline Mickiewicz
Contact_Organization: State of Connecticut Department of Environmental Protection
Process_Step:
Process_Description:
The Federal Open Space Property geodatabase feature class was converted to an ArcSDE feature class.
Source_Used_Citation_Abbreviation:
Source 5, Federal Open Space Property Geodatabase
Process_Date: 2009
Source_Produced_Citation_Abbreviation:
Source 6, Federal Open Space ArcSDE Feature Class
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: Connecticut Department of Environmental Protection
Back to Top
Spatial_Data_Organization_Information:
Indirect_Spatial_Reference_Method:
State of Connecticut, United States
Direct_Spatial_Reference_Method: Vector
Point_and_Vector_Object_Information:
SDTS_Terms_Description:
SDTS_Point_and_Vector_Object_Type: G-polygon
Point_and_Vector_Object_Count: 70
Back to Top
Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Map_Projection:
Map_Projection_Name: Lambert Conformal Conic
Lambert_Conformal_Conic:
Lambert Conformal Conic
Standard_Parallel: 41.200000
Standard_Parallel: 41.866667
Longitude_of_Central_Meridian: -72.750000
Latitude_of_Projection_Origin: 40.833333
False_Easting: 999999.999996
False_Northing: 499999.999998
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: coordinate pair
Coordinate_Representation:
Abscissa_Resolution: 0.000250
Ordinate_Resolution: 0.000250
Planar_Distance_Units: survey feet
Geodetic_Model:
Horizontal_Datum_Name: North American Datum of 1983
Ellipsoid_Name: Geodetic Reference System 80
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257222
Vertical_Coordinate_System_Definition:
Altitude_System_Definition:
Altitude_Resolution: 1.000000
Altitude_Encoding_Method: Explicit elevation coordinate included with horizontal coordinates
Back to Top
Entity_and_Attribute_Information:
Detailed_Description:
Entity_Type:
Entity_Type_Label: depgis.DEP.FEDERAL_OPEN_SPACE
Entity_Type_Definition:
Federally owned open space land
Entity_Type_Definition_Source:
Connecticut Department of Environmental Protection
Attribute:
Attribute_Label: Shape
Attribute_Definition:
Feature geometry.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Coordinates defining the features.
Attribute:
Attribute_Label: NAME
Attribute_Definition:
Name of the Federal facility or the Federal Agency that owns the facility.
Attribute_Definition_Source:
Connecticut Department of Environmental Protection
Attribute_Domain_Values:
Unrepresentable_Domain:
Each federal facility's name. These values are not unique.
Attribute:
Attribute_Label: CD
Attribute_Definition:
Abbreviation for Conservation/Development.  This field contains the category of ownership of the parcel feature.
Attribute_Definition_Source:
Connecticut Department of Environmental Protection
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: EXIST
Enumerated_Domain_Value_Definition:
Existing Preserved Open Space.  Represents parcels owned in fee simple interest by the Federal government.
Enumerated_Domain_Value_Definition_Source:
Connecticut Department of Environmental Protection
Enumerated_Domain:
Enumerated_Domain_Value: PRES
Enumerated_Domain_Value_Definition:
Preservation Area.  Represents parcels of land that are partial interests (easements).
Enumerated_Domain_Value_Definition_Source:
Connecticut Department of Environmental Protection
Attribute:
Attribute_Label: SHAPE
Attribute_Definition:
Feature geometry.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Coordinates defining the features.
Attribute:
Attribute_Label: OBJECTID
Attribute_Definition:
Internal feature number.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute_Label: SHAPE.area
Attribute:
Attribute_Label: SHAPE.len
Overview_Description:
Entity_and_Attribute_Overview:
Includes polygon features for all Federally owned open space property such as National Park Service land, Army Corps of Engineers land, etc.  Information about these features includes the NAME attribute (facility name and/or owner of the property) and the CD attribute (property ownership type classification).  Use the CD attribute to symbolize features by ownership type on a map. Ownership type consists of two values:  EXIST denotes Existing Preserved open space owned in fee simple interest and PRES denotes Preservation Area that is easement ownership only.
Back to Top
Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3540
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Resource_Description: Federal Open Space
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Format_Name: Shapefile, Feature Class
Format_Version_Number: ArcGIS
File_Decompression_Technique: Zip file
Digital_Transfer_Option:
Online_Option:
Computer_Contact_Information:
Network_Address:
Network_Resource_Name: http://www.ct.gov/deep
Custom_Order_Process:
The data distributor does not provide custom GIS analysis or mapping services.  Data is available in a standard format and may be converted to other formats, projections, coordinate systems, or selected for specific geographic regions by the party receiving the data.
Technical_Prerequisites:
Geographic information system (GIS), computer-aided drawing or other mapping software is necessary to display, view and access the information.
Back to Top
Metadata_Reference_Information:
Metadata_Date: 20111208
Metadata_Review_Date: 20090519
Metadata_Future_Review_Date: None
Metadata_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Jacqueline L. Mickiewicz
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: CT
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3085
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata_Standard_Version: FGDC-STD-001-1998
Metadata_Time_Convention: local time
Metadata_Extensions:
Online_Linkage: http://www.esri.com/metadata/esriprof80.html
Profile_Name: ESRI Metadata Profile
Back to Top
