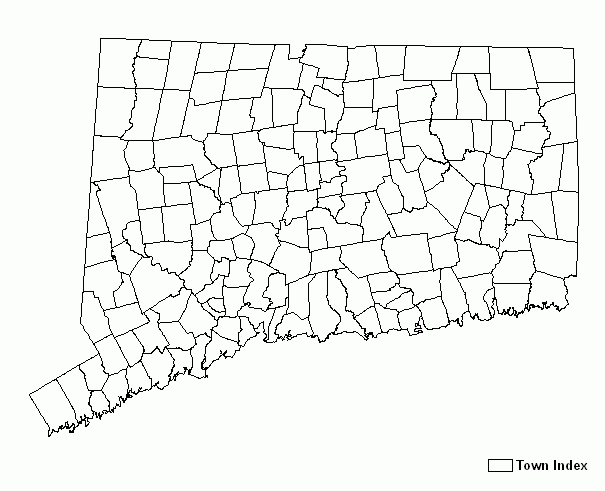

Connecticut Town Index is a 1:125,000-scale polygon feature-based layer that includes a polygon feature for every Connecticut town (municipality). There are 169 town polygon features in this layer. The corresponding town number and town name attributes uniquely identify town polygon features. Town number values are based on the Town Codes issued by the State of Connecticut, Office of the State Controller, which range from 1 to 169. As a historic note, the Connecticut Town Index layer was originally digitized in 1986 by the Connecticut Department of Environmental Protection using Esri ArcInfo 3 software installed on a mini computer. It was the first statewide GIS layer created by the Connecticut Department of Environmental Protection. The data was in ArcInfo coverage format, Connecticut State Plane Coordinate System, North American Datum 1927, and map units feet.
Edition date
Includes one polygon feature for each Connecticut town (municipality). (Source: State of Connecticut, Department of Enviromental Protection)
Internal feature number. (Source: ESRI)
Feature geometry. (Source: ESRI)
Town Number - ID number for the Connecticut Town (municipality), based on the Town Codes issued by the State of Connecticut, Office of the State Controller, which range from 1 to 169. (Source: State of Connecticut, Office of the State Controller)
Town Name - Text values that correspond to numeric TOWN_NO attribute values. TOWN is the English language equivalent of (decodes) the TOWN_NO field. (Source: State of Connecticut, Office of the State Controller)
Includes one polygon feature for each Connecticut town (municipality), uniquely identified with Town number and Town name attribute values. Label polygon features with the TOWN attribute to display town names on a map.
Connecticut Town numbers, based on the Town Codes issued by the State of Connecticut, range from 1 to 169 in the following order: Andover (1), Ansonia (2), Ashford (3), Avon (4), Barkhamsted (5), Beacon Falls (6), Berlin (7), Bethany (8), Bethel (9), Bethlehem (10), Bloomfield (11), Bolton (12), Bozrah (13), Branford (14), Bridgeport (15), Bridgewater (16), Bristol (17), Brookfield (18), Brooklyn (19), Burlington (20), Canaan (21), Canterbury (22), Canton (23), Chaplin (24), Cheshire (25), Chester (26), Clinton (27), Colchester (28), Colebrook (29), Columbia (30), Cornwall (31), Coventry (32), Cromwell (33), Danbury (34), Darien (35), Deep River (36), Derby (37), Durham (38), Eastford (39), East Granby (40), East Haddam (41), East Hampton (42), East Hartford (43), East Haven (44), East Lyme (45), Easton (46), East Windsor (47), Ellington (48), Enfield (49), Essex (50), Fairfield (51), Farmington (52), Franklin (53), Glastonbury (54), Goshen (55), Granby (56), Greenwich (57), Griswold (58), Groton (59), Guilford (60), Haddam (61), Hamden (62), Hampton (63), Hartford (64), Hartland (65), Harwinton (66), Hebron (67), Kent (68), Killingly (69), Killingworth (70), Lebanon (71), Ledyard (72), Lisbon (73), Litchfield (74), Lyme (75), Madison (76), Manchester (77), Mansfield (78), Marlborough (79), Meriden (80), Middlebury (81), Middlefield (82), Middletown (83), Milford (84), Monroe (85), Montville (86), Morris (87), Naugatuck (88), New Britain (89), New Canaan (90), New Fairfield (91), New Hartford (92), New Haven (93), Newington (94), New London (95), New Milford (96), Newtown (97), Norfolk (98), North Branford (99), North Canaan (100), North Haven (101), North Stonington (102), Norwalk (103), Norwich (104), Old Lyme (105), Old Saybrook (106), Orange (107), Oxford (108), Plainfield (109), Plainville (110), Plymouth (111), Pomfret (112), Portland (113), Preston (114), Prospect (115), Putnam (116), Redding (117), Ridgefield (118), Rocky Hill (119), Roxbury (120), Salem (121), Salisbury (122), Scotland (123), Seymour (124), Sharon (125), Shelton (126), Sherman (127), Simsbury (128), Somers (129), Southbury (130), Southington (131), South Windsor (132), Sprague (133), Stafford (134), Stamford (135), Sterling (136), Stonington (137), Stratford (138), Suffield (139), Thomaston (140), Thompson (141), Tolland (142), Torrington (143), Trumbull (144), Union (145), Vernon (146), Voluntown (147), Wallingford (148), Warren (149), Washington (150), Waterbury (151), Waterford (152), Watertown (153), Westbrook (154), West Hartford (155), West Haven (156), Weston (157), Westport (158), Wethersfield (159), Willington (160), Wilton (161), Winchester (162), Windham (163), Windsor (164), Windsor Locks (165), Wolcott (166), Woodbridge (167), Woodbury (168), and Woodstock (169).
79 Elm Street
Connecticut Town Index is a general purpose index map of Connecticut towns that was compiled at 1:125,000 scale (1 inch equals approximately 2 miles). The layer is designed to be used to depict Connecticut towns at small scales or on small maps printed on regular size (8.5 x 11 inch) paper, for example. The Town Index layer does not accurately represent Connecticut town boundaries because it was digitized at 1:125,000 scale. Do not display, map or analyze the Town Index layer with information collected at larger scales. To depict more accurate 1:24,000-scale Connecticut town boundaries on a map, use the layer named Town, which is also published by the State of Connecticut Department of Environmental Protection.
Digitzed Connecticut town boundaries printed on map.
Town_Index.shp was originally in ArcInfo Coverage format and digitized in 1986 using the Connecticuct State Plane Coordinate System, North American Datum of 1927 (NAD27). In 1999, the data was converted to ESRI Shapefile format and to the Connecticut State Plane Coordinate System, North American Datum of 1983 (NAD83). The 2005 edition includes complete metadata. Town_Index.shp is in Shapefile format. Prior to 2005, this shapefile was named Town.shp.
Town_Index is in GeoDatabase Feature Class format.
Create Towns Index layer - Using ESRI ArcInfo software, features were digitized by registering the 1:125,000-scale State of Connecticut map to the digitizing tablet and using the crosshairs of the digitizer's mouse to manually capture the geometry (shape) of town boundaries on the published map. It is not known which features on the map were used as registration points to register the map to the digitizing table nor is the quality of the registration known or documented. For example, the RMS error was undocumented and not known at the time this metatdata was written. In general, line work on the published map corresponding to the boundaries of the Connecticut towns and the Connecticut coastline were manually digitized off the source map so as to not overshoot or undershoot any intersecting town boundaries. Where necessary, additional minor corrections (edits) to feature geometry were manually digitized on the screen (heads-up digitizing) at larger (zoomed in) display scales. Line features enclosed the geographic areas for all 169 towns. Outlined by these linear features, town polygon features were subsequently created and manually encoded with the corresponding Town number and Town name attribute values. These values were visually inspected for accuracy. In 1999, the data was converted from ESRI ArcInfo Coverage format to ESRI Shapefile format and transformed from the Connecticut State Plane Coordinate System, North American Datum of 1927 (NAD27) to the Connecticut State Plane Coordinate System, North American Datum of 1983 (NAD83). The AREA, PERIMETER, TOWN#, and TOWN-ID attributes from ArcInfo coverage format were not included in the Shapefile because their values are only maintained by ArcInfo software with spatial data that is ArcInfo coverage format. Using ArcView 3.3 software and an Avenue script named Table.ExportSorted (Peter Girard, author) available from the ArcScripts download page at www.esri.com, the polygon feature attribute table was permanently sorted in ascending order by Town number. As a historic note, the Connecticut Town Index layer was originally digitized in 1986 by the Connecticut Department of Environmental Protection using Esri ArcInfo 3 software installed on a mini computer. It was the first statewide GIS layer created by the Connecticut Department of Environmental Protection. The data was in ArcInfo coverage format, Connecticut State Plane Coordinate System, North American Datum 1927, and map units feet.
79 Elm Street
Convert to GeoDatabase Feature Class format - Defined new Feature Class named Town_Index; and imported the attribute definitions, loaded features and imported metadata from Town_Index.shp shapefile. Spatial Reference Properties for Feature Class: Coordinate System: NAD_1983_StatePlane_Connecticut_FIPS_0600_Feet XY Domain MinX: 100000; MaxX: 2247483.645 XY Domain MinY: 200000; MaxY: 2347483.645 Precision: 1000
79 Elm Street
All attributes have valid values. Values are within defined domains. The Town number and Town name polygon attributes were manually entered based information depicted on a map of the state of Connecticut.
The horizontal positional accuracy of this data is unknown. Avoid displaying or printing this information at map scales greater than 1:125,000 (1 inch equals approximately 2 miles).
The completeness of the data reflects the feature content of the data source, which a 1:125,000-scale planemetric map of Connecticut published by the U.S Geological Survey. This data is not updated.
Polygon features conform to the following topological rules. Polygons are single part. There are no duplicate polygons. Polygons do not self overlap. Polygons do not overlap other polygons. Establishment of logical consistency was orginally performed by the State of Connecticut, Department of Environmental Protection using ESRI ArcInfo software to manually create and control feature topology. The original minimum distance between vertices (ArcInfo Coverage fuzzy tolerance) and a minimum allowed overshoot length (ArcInfo Coverage dangle length) were not documented and unknown at the time this metadata was created in 2005. However, the original data was known to be topologically clean. After subsequently converting the data from ESRI ArcInfo Coverage to ESRI Shapefile format, no automated procedures or tests were performed to enforce the topology rules other than visual inspection.
No restrictions or legal prerequisites for using the data. The data is suitable for use at appropriate scale, and is not intended for maps printed at scales greater or more detailed than 1:125,000 scale (1 inch equals approximately 2 miles). Although this data set has been used by the State of Connecticut, Department of Environmental Protection, no warranty, expressed or implied, is made by the State of Connecticut, Department of Environmental Protection as to the accuracy of the data and or related materials. The act of distribution shall not constitute any such warranty, and no responsibility is assumed by the State of Connecticut, Department of Environmental Protection in the use of these data or related materials. The user assumes the entire risk related to the use of these data. Once the data is distributed to the user, modifications made to the data by the user should be noted in the metadata. When printing this data on a map or using it in a software application, analysis, or report, please acknowledge the State of Connecticut, Department of Environmental Protection and the U.S. Geological Survey, National Mapping Program as the source for this information. For example, include the following data source description when printing this layer on a map: Towns - From the Town Index layer, compiled and published by CT DEP and USGS. Source map scale is 1:125,000.
79 Elm Street
Although this data set has been used by the State of Connecticut, Department of Environmental Protection, no warranty, expressed or implied, is made by the State of Connecticut, Department of Environmental Protection as to the accuracy of the data and or related materials. The act of distribution shall not constitute any such warranty, and no responsibility is assumed by the State of Connecticut, Department of Environmental Protection in the use of these data or related materials. The user assumes the entire risk related to the use of these data. Once the data is distributed to the user, modifications made to the data by the user should be noted in the metadata.
| Data format: | in format Shapefile, Feature Class (version ArcGIS) |
|---|---|
| Network links: | http://www.ct.gov/deep |
The data distributor does not provide custom GIS analysis or mapping services. Data is available in a standard format and may be converted to other formats, projections, coordinate systems, or selected for specific geographic regions by the party receiving the data.
